Surface finish Rz is a measure of the average maximum peak-to-valley height of a surface profile. It is commonly used in manufacturing and engineering to assess the quality of machined surfaces. Rz values are typically expressed in micrometers (µm) or microinches (µin), with lower values indicating smoother surfaces.
Rz values are obtained by measuring the vertical distance between the highest peak and the lowest valley within a specified sampling length. This measurement provides important information about the roughness of a surface and can impact the performance and functionality of machined parts.
Surface Finish Rz To Ra Conversion Chart
What is Surface Finish Ra?
Surface finish Ra, also known as average roughness, is another common measure of surface roughness. Ra values represent the arithmetic average of the absolute values of all the profile heights within a sampling length. Like Rz values, Ra values are expressed in micrometers or microinches, with lower values indicating smoother surfaces.
Surface finish Ra is a useful metric for evaluating the overall smoothness of a surface. It provides a more general assessment of surface roughness compared to Rz values, which focus on the largest peak-to-valley height. Ra values are often used in conjunction with Rz values to fully characterize the roughness of a machined surface.

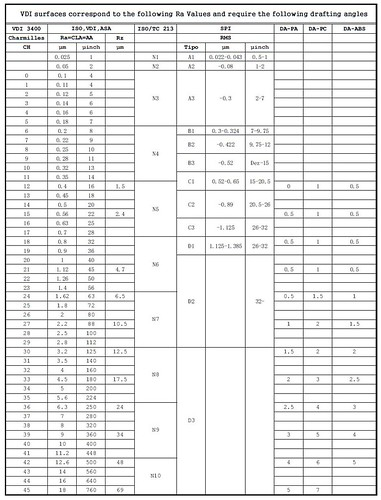

Surface Finish Rz To Ra Conversion Chart
Converting surface finish Rz values to Ra values (or vice versa) can be useful for comparing and interpreting surface roughness data. While there is no direct formula to convert Rz to Ra values, several conversion charts and tables are available to help simplify the process.
These conversion charts typically provide a range of Rz values and their corresponding Ra values, allowing users to easily determine the equivalent roughness values. By using a surface finish Rz to Ra conversion chart, manufacturers and engineers can ensure consistency and accuracy in assessing surface roughness across different measurement systems.
